- CTS Black Steel Flange 150lb Spec Data Sheet
Specifications
WORKING PRESSURE
| Size | Code | Working Pressure (at atmospheric) |
Material | Thickness |
|---|---|---|---|---|
| 2″ | BSRG002 | 450 PSI | Plate Steel | .625 |
| 2-1/2″ | BSRG025 | 450 PSI | Plate Steel | .625 |
| 3″ | BSRG003 | 450 PSI | Plate Steel | .625 |
| 4″ | BSRG004 | 450 PSI | Plate Steel | .625 |
| 5″ | BSRG005 | 450 PSI | Plate Steel | .625 |
| 6″ | BSRG006 | 450 PSI | Plate Steel | .625 |
| 8″ | BSRG008 | 450 PSI | Plate Steel | .750 |
| 10″ | BSRG010 | 450 PSI | Plate Steel | .750 |
| 12″ | BSRG012 | 450 PSI | Plate Steel | .750 |

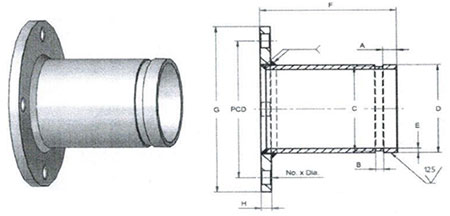

| SIZE | A | B | C | D | E | F | G | H | Drilling Template | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| No | Diameter | PCD | |||||||||
| 2″ | 0.625 | 0.344 | 2.36 | 2.38 | 0.15 | 4.0 | 5.98 | 0.63 | 4 | 0.75 | 4.78 |
| 2.5″ | 0.625 | 0.344 | 2.71 | 2.88 | 0.20 | 4.0 | 7.01 | 0.63 | 4 | 0.75 | 5.51 |
| 3″ | 0.625 | 0.344 | 3.35 | 3.5 | 0.21 | 4.0 | 7.52 | 0.63 | 4 | 0.75 | 5.98 |
| 4″ | 0.625 | 0.344 | 4.32 | 4.51 | 0.23 | 6.0 | 9.02 | 0.75 | 8 | 0.75 | 7.48 |
| 5″ | 0.625 | 0.344 | 5.38 | 5.58 | 0.26 | 6.0 | 10.00 | 0.75 | 8 | 0.87 | 8.5 |
| 6″ | 0.625 | 0.344 | 6.44 | 6.64 | 0.28 | 6.0 | 10.98 | 0.87 | 8 | 0.87 | 9.49 |
| 8″ | 0.75 | 0.468 | 8.42 | 8.52 | 0.32 | 6.0 | 13.5 | 0.87 | 8 | 0.87 | 11.73 |
| 10″ | 0.75 | 0.468 | 10.6 | 10.77 | 0.36 | 8.0 | 15.98 | 1.02 | 12 | 0.98 | 14.25 |
| 12″ | 0.75 | 0.468 | 12.5 | 12.77 | 0.38 | 8.0 | 19.02 | 1.06 | 12 | 0.98 | 17.01 |
CTS Black Steel Flange for all grooved HVAC systems
